Brand Name : ADLER
Model Number : AS8 gPV NH3L
Certification : IEC etc.
Place of Origin : Germany/China
MOQ : 1000PCS
Payment Terms : Western Union, MoneyGram, T/T
Supply Ability : 5000,000PCS
Delivery Time : 4 WEEKS
Packaging Details : Bulk
Product Name : Class gPV Cylindrical Fuse Links
Rated Voltage : 1000V DC, class gPV
Rated Current : 125~400A
Rated Breaking Capacity : 30KA
Max. Dissipation : 65W
Standard : IEC60269
IEC60269 AS8 gPV NH3L Class gPV Cylindrical Fuse Links 1000VDC 65W 125~400A 30KA
Cylindrical Fuse Links AS8_datasheet_20161109.pdf
Description
Feature
ELECTRICAL SPECIFICATIONS
| Part Number | Rated Current | I2T(A2s) | Max.Dissipation(W) | ||
| Pre-Arc | Total@ Rated Voltage | 70% In | 100% In | ||
| AS83250700 | 250A | 22000 | 95000 | 75 | 100 |
| AS83315700 | 315A | 27720 | 119700 | 75 | 100 |
| AS83350700 | 350A | 30800 | 133000 | 75 | 100 |
| AS83450700 | 450A | 39600 | 17100 | 75 | 100 |
| AS83500700 | 500A | 44000 | 190000 | 75 | 100 |
| AS83630700 | 630A | 55440 | 239400 | 75 | 100 |

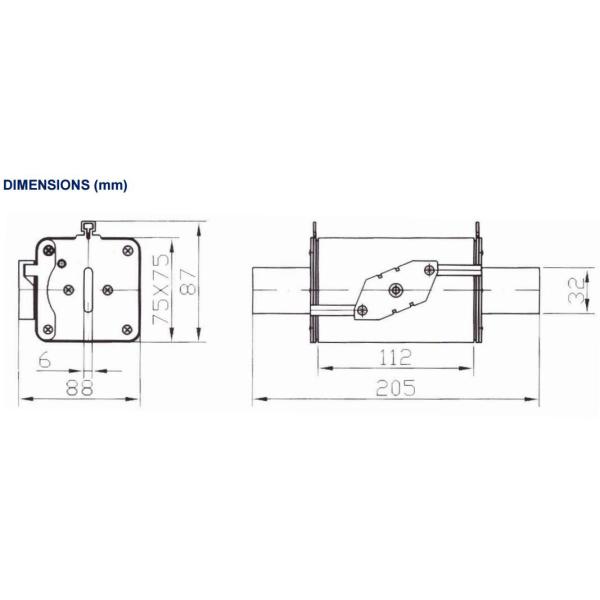

Dimension

TIME/ CURRENT (I-T) CHART (reference) & CURRENT LIMITING-CURRENT (reference)

MATCHING FUSE HOLDERS/ ACCESSORIES:
Holders NH3L/NH2XL Series.

Related Product Range


Environmental

About Manufacturer

Company Name: ADLER Elektrotechnik Leipzig GmbH
 Location: Leipzig, Saxony, Germany
 Expertise: Design, Marketing and Sales of electrical, EV and Photovoltaic protection
Our product range includes:

Across all of our product range, we are proud to represent established, certified products that have developed a reputation for quality, reliability and innovation. Please refer to our brand and datasheets available from our website for a more detailed overview of our products.
 We provide our customers with solutions expertise, a high standard of personalized service, availability of stock and an 'easy to deal with' experience.
 Our Mission:
 We add value to our customer's business by supplying quality specialist electrical products, solutions-focused expertise, personal service and genuine customer care at highest possible standards in our industry.

|   |
